cpp -- Object-Oriented Thinking(2)

Instance and Static Members

A static variable is shared by all objects of the class. A static function cannot access instance members of the class.

UML中，static用下划线表示。

声明class时，在.h文件中，在变量或函数前加上static关键字。

example:

#ifndef CIRCLE_H
#define CIRCLE_H

class Circle
{
public:
  Circle();
  Circle(double);
  double getArea();
  double getRadius();
  void setRadius(double);
  static int getNumberOfObjects();

private:
  double radius;
  static int numberOfObjects;
};

#endif

实现class时，在.cpp文件中，static的变量可以定义成全局变量，比如下面第二行int Circle::numberOfObjects = 0;。

#include "CircleWithStaticDataFields.h"

int Circle::numberOfObjects = 0;

// Construct a circle object
Circle::Circle()
{
  radius = 1;
  numberOfObjects++;
}

// Construct a circle object
Circle::Circle(double newRadius)
{
  radius = newRadius;
  numberOfObjects++;
}

// Return the area of this circle
double Circle::getArea()
{
  return radius * radius * 3.14159;
}

// Return the radius of this circle
double Circle::getRadius()
{
  return radius;
}

// Set a new radius
void Circle::setRadius(double newRadius)
{
  radius = (newRadius >= 0) ? newRadius : 0;
}

// Return the number of circle objects
int Circle::getNumberOfObjects()
{
  return numberOfObjects;
}

Constant Member Functions

C++ also enables you to specify a constant member function to tell the compiler that the function should not change the value of any data fields in the object.

在函数的参数前加const，那么在这个函数里，该参数就不能被修改。比如：

void printCircle(const Circle& c)
{
    cout << "The area of the circle of "
    << c.getRadius() << " is " << c.getArea() << endl;
}

也可以用const关键字定义一个“常量函数”，告诉编译器这个函数不能修改该对象的数据，比如get方法，一般不修改对象的数据。const关键字放在函数头的末尾。

函数声明：

#ifndef CIRCLE_H
#define CIRCLE_H

class Circle
{
public:
  Circle();
  Circle(double);
  double getArea() const;
  double getRadius() const;
  void setRadius(double);
  static int getNumberOfObjects();

private:
  double radius;
  static int numberOfObjects;
};

#endif

函数实现：

#include "CircleWithConstantMemberFunctions.h"

int Circle::numberOfObjects = 0;

// Construct a circle object
Circle::Circle()
{
  radius = 1;
  numberOfObjects++;
}

// Construct a circle object
Circle::Circle(double newRadius)
{
  radius = newRadius;
  numberOfObjects++;
}

// Return the area of this circle
double Circle::getArea() const
{
  return radius * radius * 3.14159;
}

// Return the radius of this circle
double Circle::getRadius() const
{
  return radius;
}

// Set a new radius
void Circle::setRadius(double newRadius)
{
  radius = (newRadius >= 0) ? newRadius : 0;
}

// Return the number of circle objects
int Circle::getNumberOfObjects()
{
  return numberOfObjects;
}

• Note: 只能把实例函数定义为const，不能把static的函数定义为const。

Thinking in Objects

The procedural paradigm focuses on designing functions. The object-oriented paradigm couples data and functions together into objects. Software design using the object-oriented paradigm focuses on objects and operations on objects.

Object Composition

An object can contain another object. The relationship between the two is called composition.

Composition is actually a special case of the aggregation relationship.

如果一个对象是由另一个对象独占的，那就叫做composition，否则叫做aggregation。比如“一个学生有一个名字”，那么这个名字只是这个学生拥有的，就叫composition。比如“一个学生有一个地址”，那么这个地址也可以是其他人的，就叫aggregation。

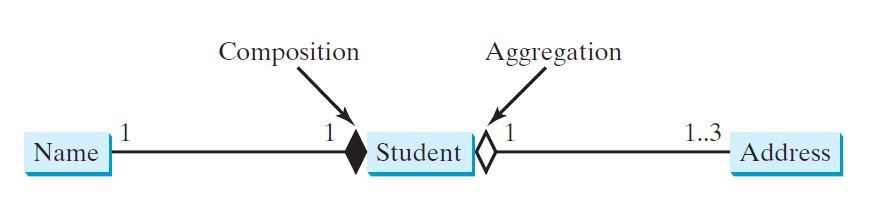

UML图中，用实心的菱形放在拥有者的一边，来代表composition；用空心的菱形代表aggregation。
